Selected Delivery Record

Evidence, at the scale it was built.

Filter by system9/9

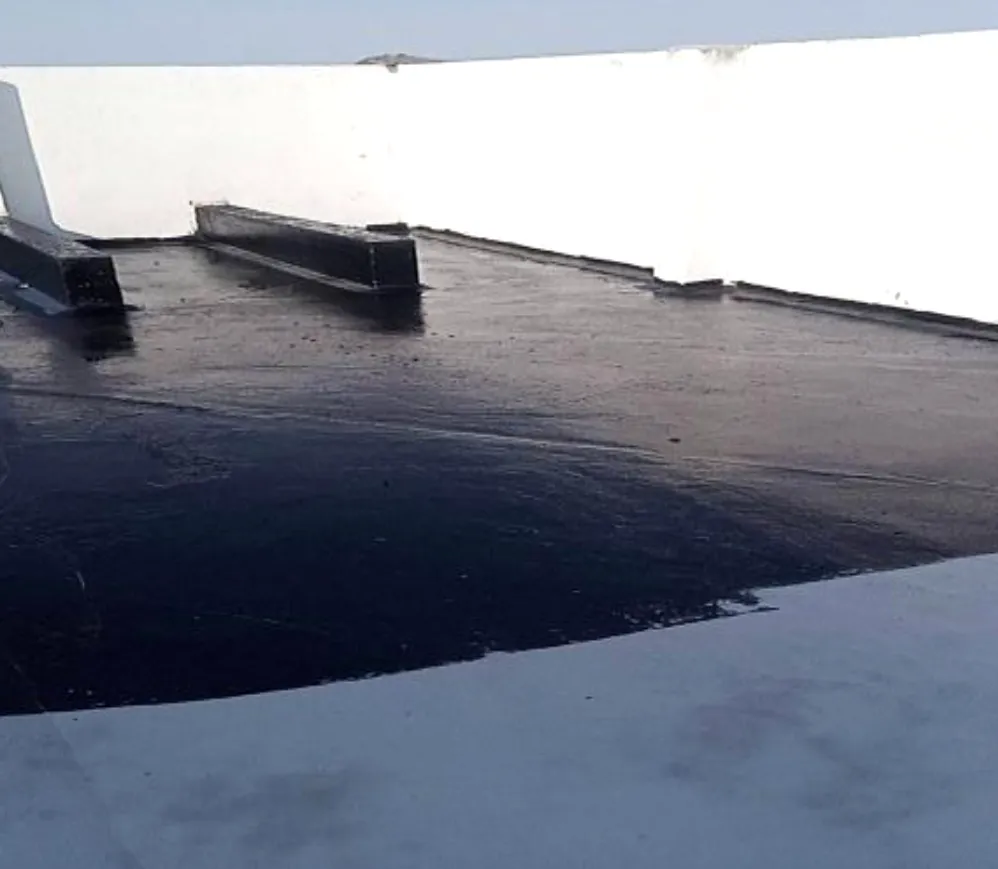

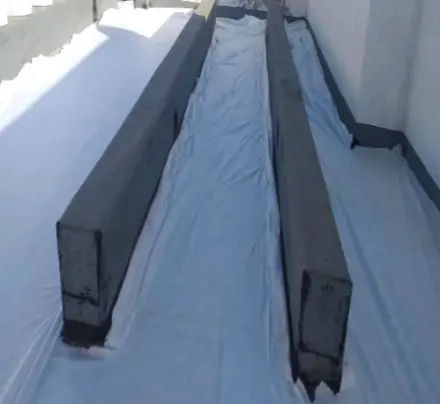

Venan — application: membrane and coating application in progress

01RESIDENTIAL

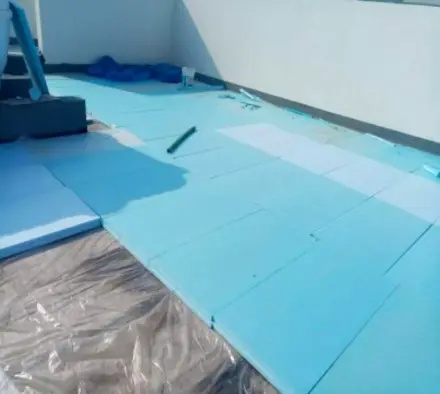

Venan

Location: Jeddah, Saudi Arabia
Project Value: SAR 10M
Scope of Work: Waterproofing and thermal insulation
System Description: 4 cm XPS + 2 × 4 mm bitumen membrane + geotextile

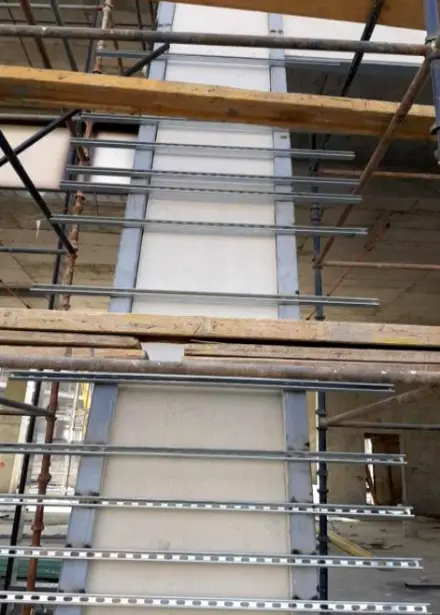

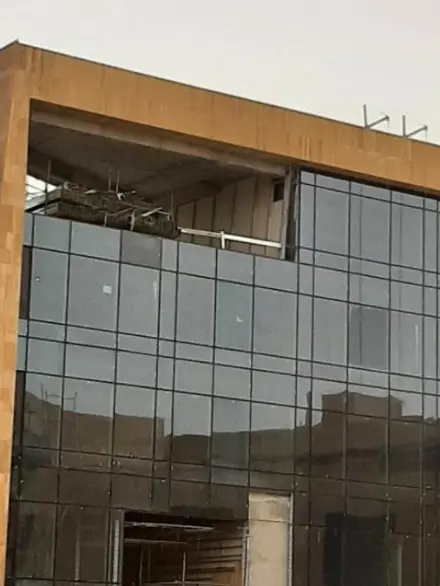

Via Riyadh — completion: the completed installation

02MIXED-USE RETAIL

Via Riyadh

Location: Riyadh, Saudi Arabia
Executed Area (m²): 40,000
Scope of Work: Technical insulation
System Description: Cementitious-polymer system

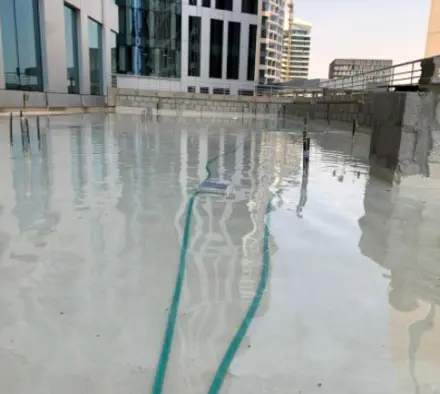

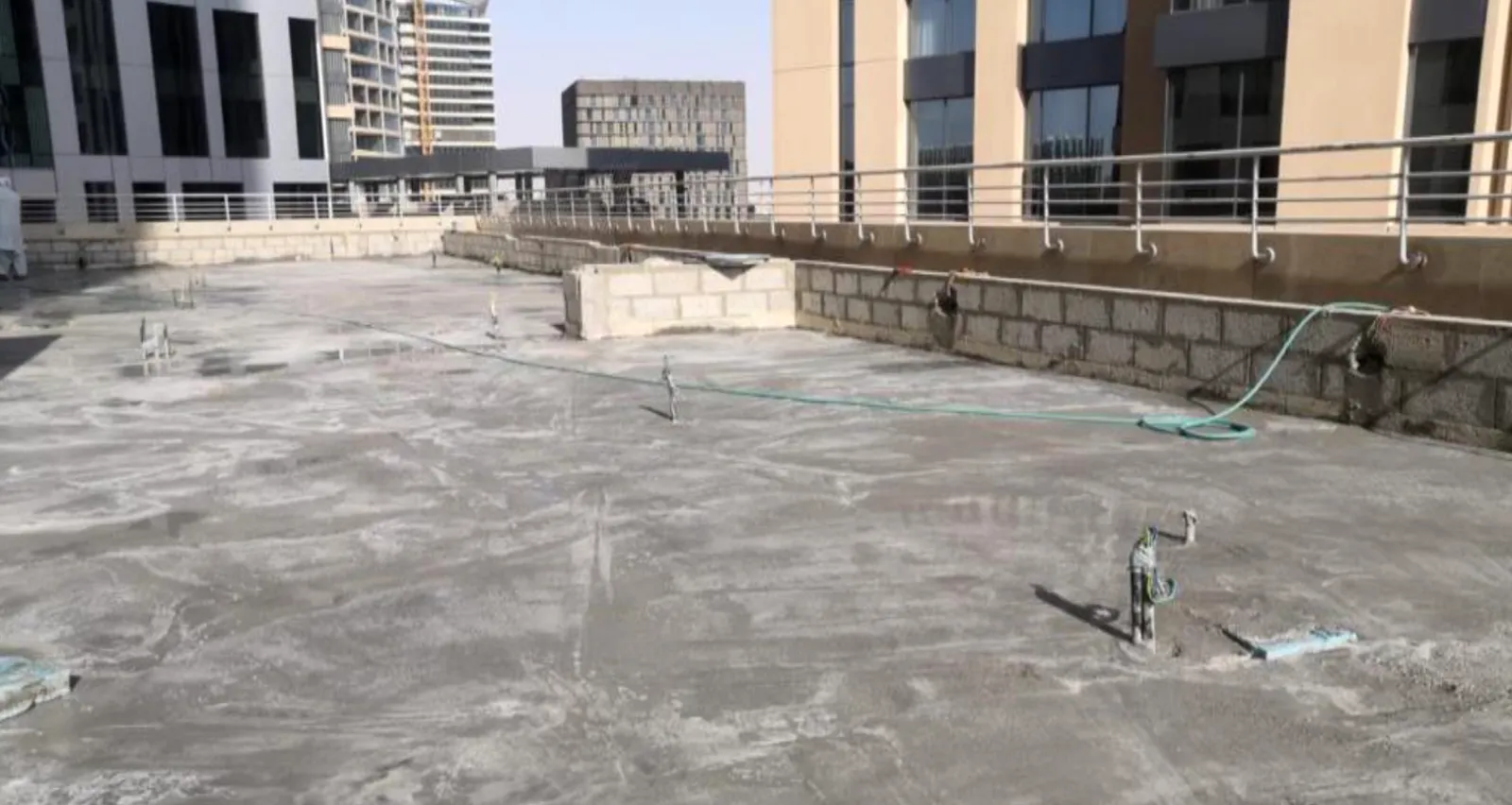

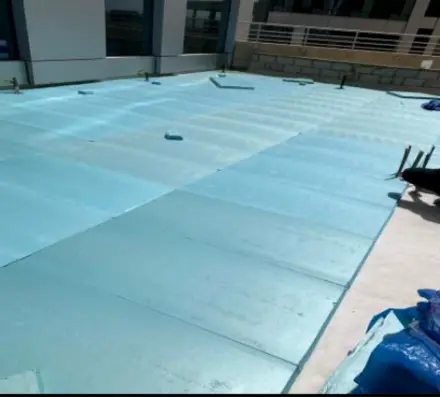

KAFD Tower Terrace Works — preparation: site and deck preparation before the build-up is laid

03COMMERCIAL TOWER

KAFD Tower Terrace Works

Location: Riyadh, Saudi Arabia
Project Value: SAR 1.3M
Scope of Work: Waterproofing, XPS, root-resistant membrane and epoxy
System Description: Bitumen works: Two layers of bitumen membrane, 4 mm each

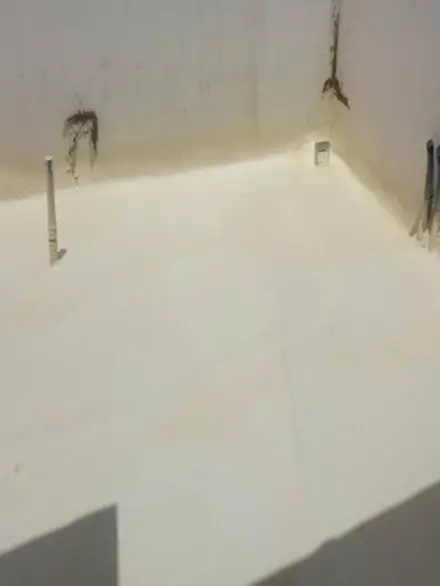

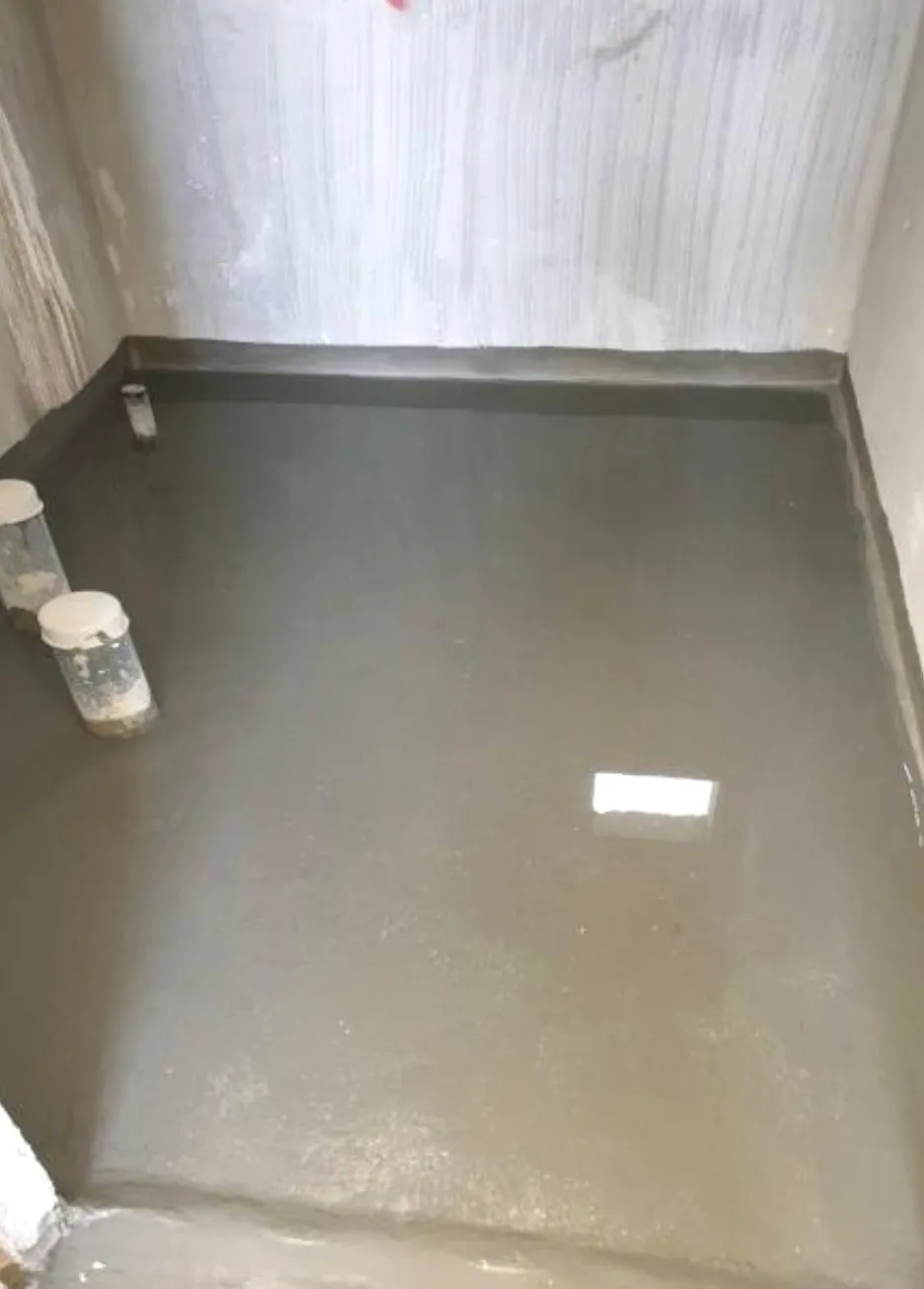

Al-Jouan Villas — testing: flood testing and inspection of the completed waterproofing

04RESIDENTIAL

Al-Jouan Villas

Location: Riyadh, Saudi Arabia
Project Value: SAR 3.8M
Scope of Work: Waterproofing, thermal insulation and acrylic membrane

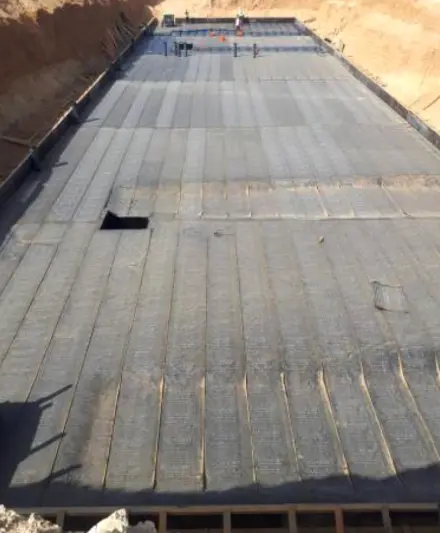

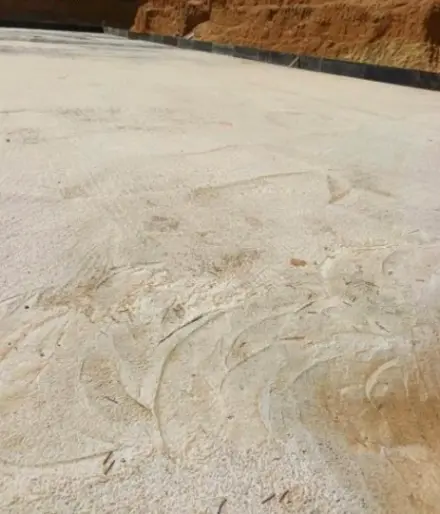

NEOM Technical Facilities — application: membrane and coating application in progress

05GIGA-PROJECT INFRASTRUCTURE

NEOM Technical Facilities

Location: Saudi Arabia
Scope of Work: Foundation moisture protection and water-tank epoxy

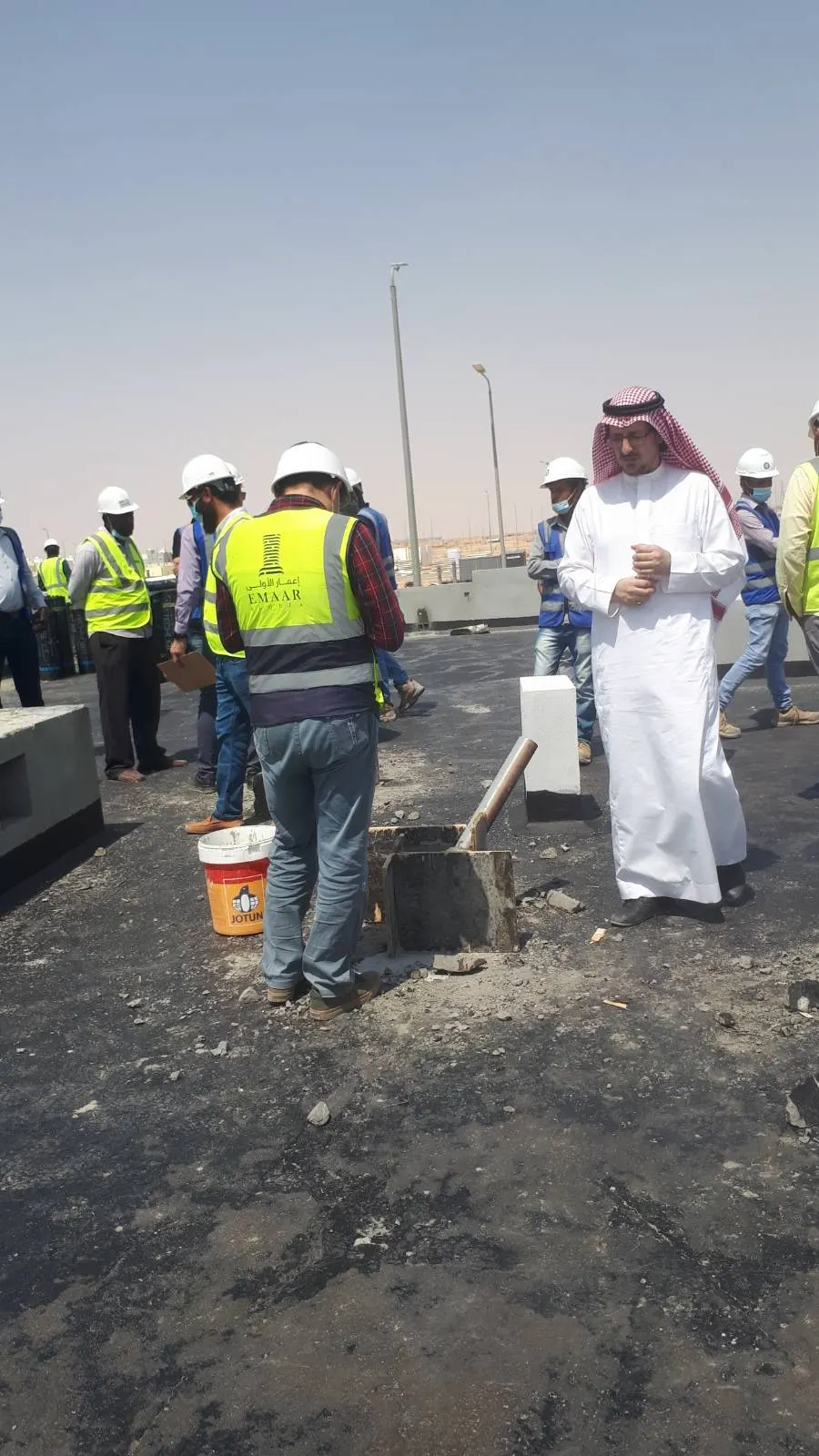

Wave 2 – Al-Majma'ah — EMAAR Advanced Materials project, photo 1 of 4

06RESIDENTIAL

Wave 2 – Al-Majma'ah

Location: Al-Majma'ah Governorate
Units: 200 villas
Scope of Work: Roof waterproofing · Wet-area waterproofing
System Description: Roofs: 4 mm bitumen membrane with mineral-surfaced (shingle) protection
Wet areas: Two coats of cementitious waterproofing

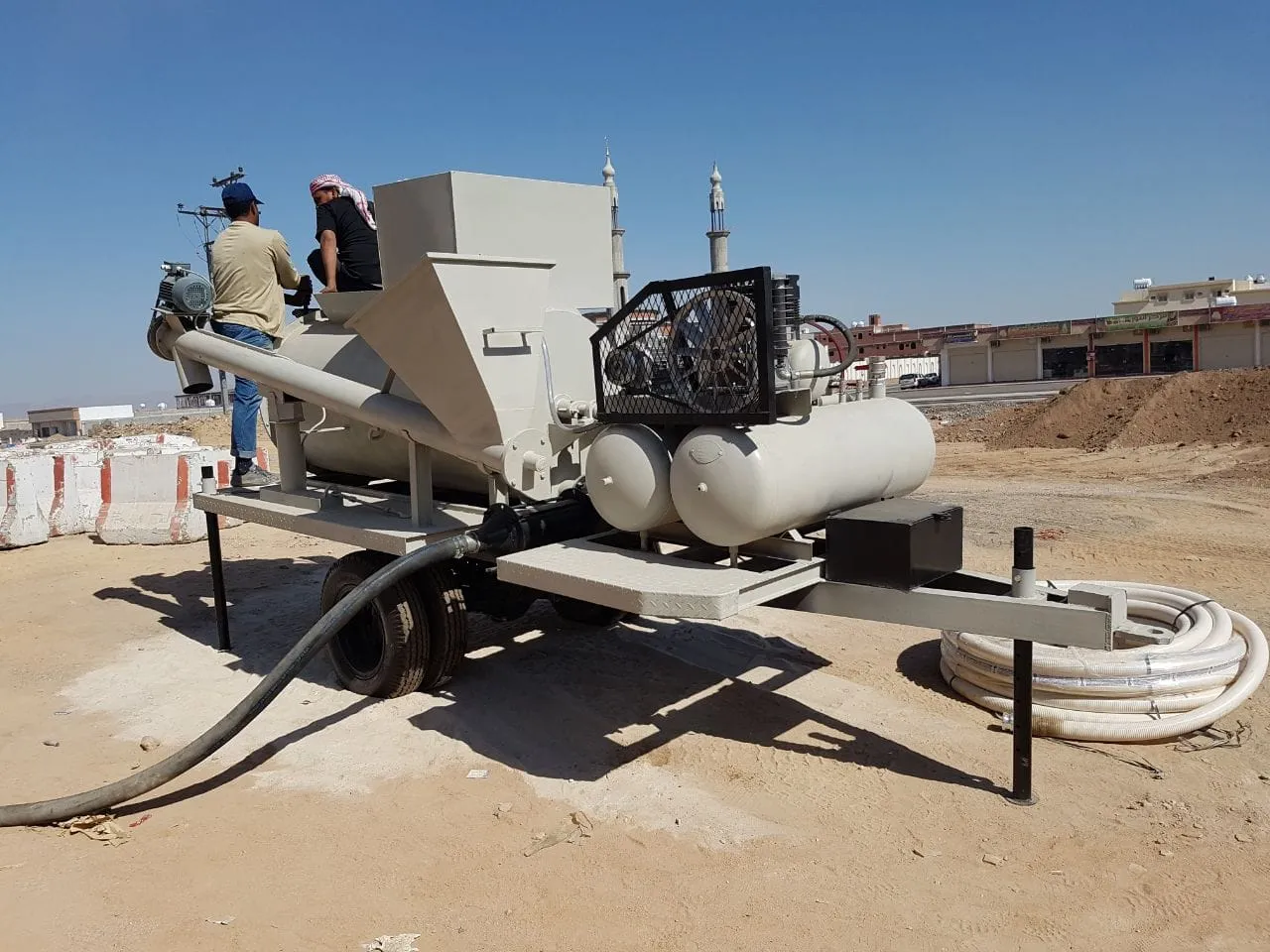

Wave 2 – Al-Dawadmi — EMAAR Advanced Materials project, photo 1 of 3

07RESIDENTIAL

Wave 2 – Al-Dawadmi

Location: Al-Dawadmi Governorate
Units: 200 villas
Scope of Work: Roof waterproofing · Wet-area waterproofing
System Description: Roofs: 4 mm bitumen membrane with mineral-surfaced (shingle) protection
Wet areas: Two coats of cementitious waterproofing

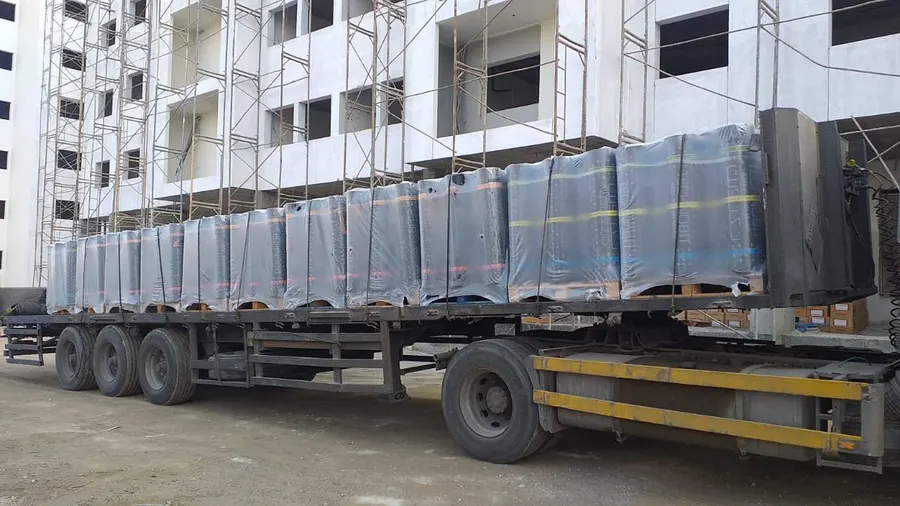

Al-Rusayfah — EMAAR Advanced Materials project, photo 1 of 13

08RESIDENTIAL

Al-Rusayfah

Location: Makkah
Units: 400 units (11 buildings × 9 floors)
Scope of Work: Thermal insulation and waterproofing · Wet-area waterproofing
System Description: Roofs: 4 cm XPS + 2 × 4 mm bitumen membrane + geotextile
Wet areas: Two coats of cementitious waterproofing

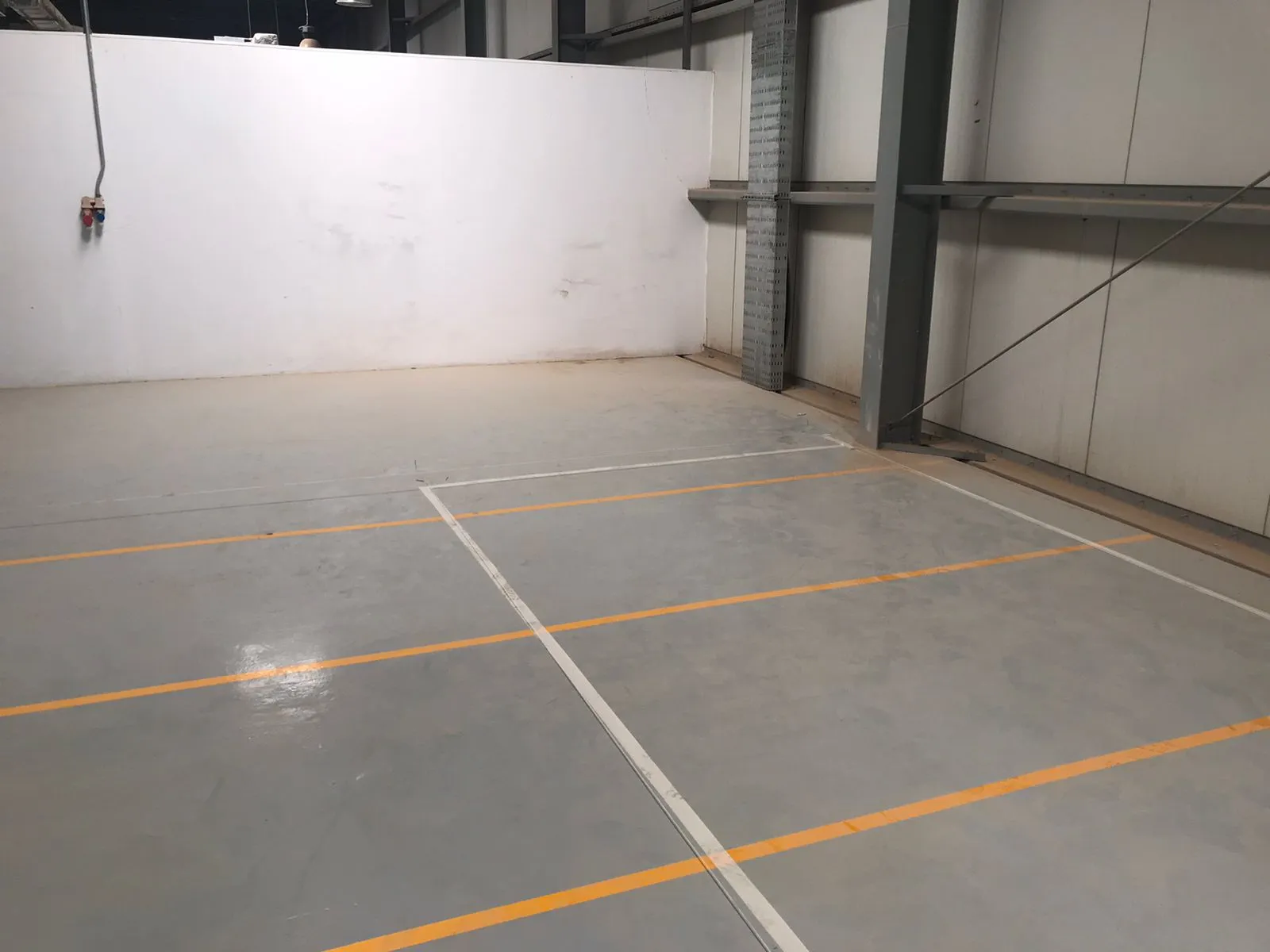

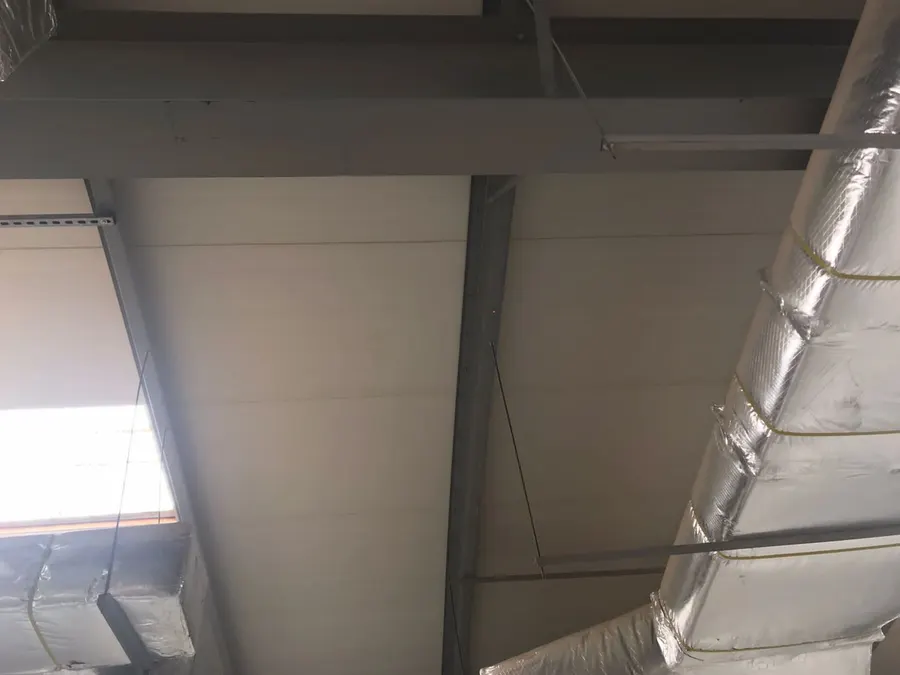

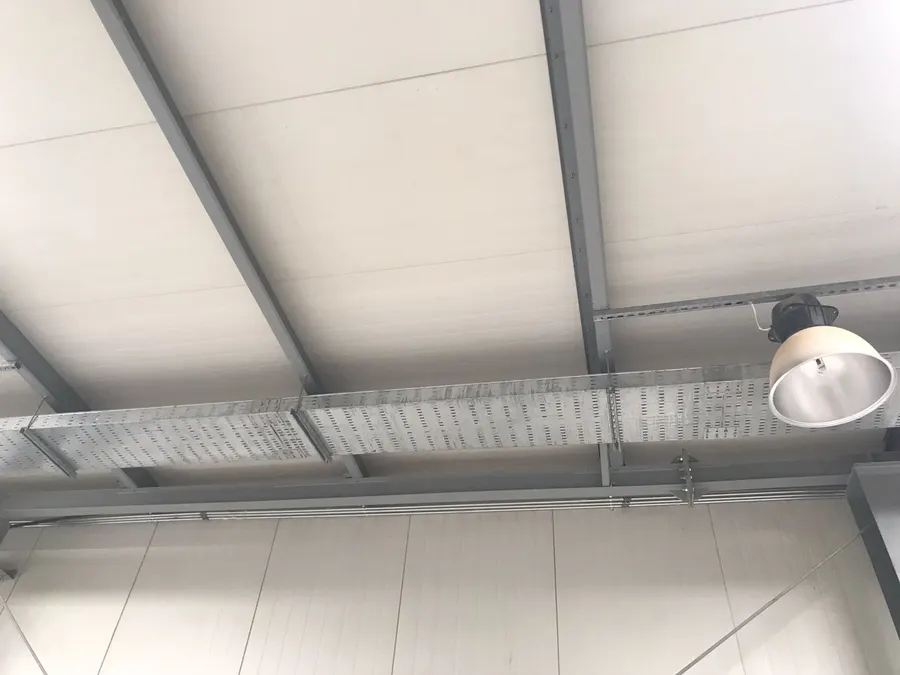

NHARA Healthcare Industries — EMAAR Advanced Materials project, photo 1 of 21

09INDUSTRIAL

NHARA Healthcare Industries

Scope of Work: Factory floor repair · Epoxy flooring and coating · Roof thermal insulation · Roof waterproofing · HVAC duct insulation

Further delivery record

Further projects in the delivery record, with their locations, units, scope and systems.

Wave 2 – Hail
Location
Hail
Units
300 villas
Scope of Work
Roof waterproofing · Wet-area waterproofing
System Description
- Roofs: 4 mm bitumen membrane with mineral-surfaced (shingle) protection
- Wet areas: Two coats of cementitious waterproofing
Ishraq Living
Location
Riyadh
Units
300 villas
Scope of Work
Roof thermal insulation and waterproofing · Wet-area waterproofing
System Description
- Roofs: 5 cm sprayed polyurethane foam with acrylic coating
- Wet areas: Two coats of cementitious waterproofing
Al-Basateen
Location
Riyadh
Units
32 villas
Scope of Work
Thermal insulation and waterproofing · Wet-area waterproofing · Planter waterproofing · Swimming-pool waterproofing
System Description
- Roofs: 4 cm sprayed polyurethane foam with two coats of acrylic
- Wet areas: Two coats of cementitious waterproofing
- Planters: 2 × 4 mm anti-root membrane
- Swimming pools: 2 × 4 mm bitumen membrane
Water Tank Waterproofing
Location
Multiple Locations
Scope of Work
Water Tank Waterproofing
System Description
- Water tanks: Two layers of cementitious waterproofing
